Backend-Core

Dev URL: https://api-dev.tokenise.io

Position in the Architecture

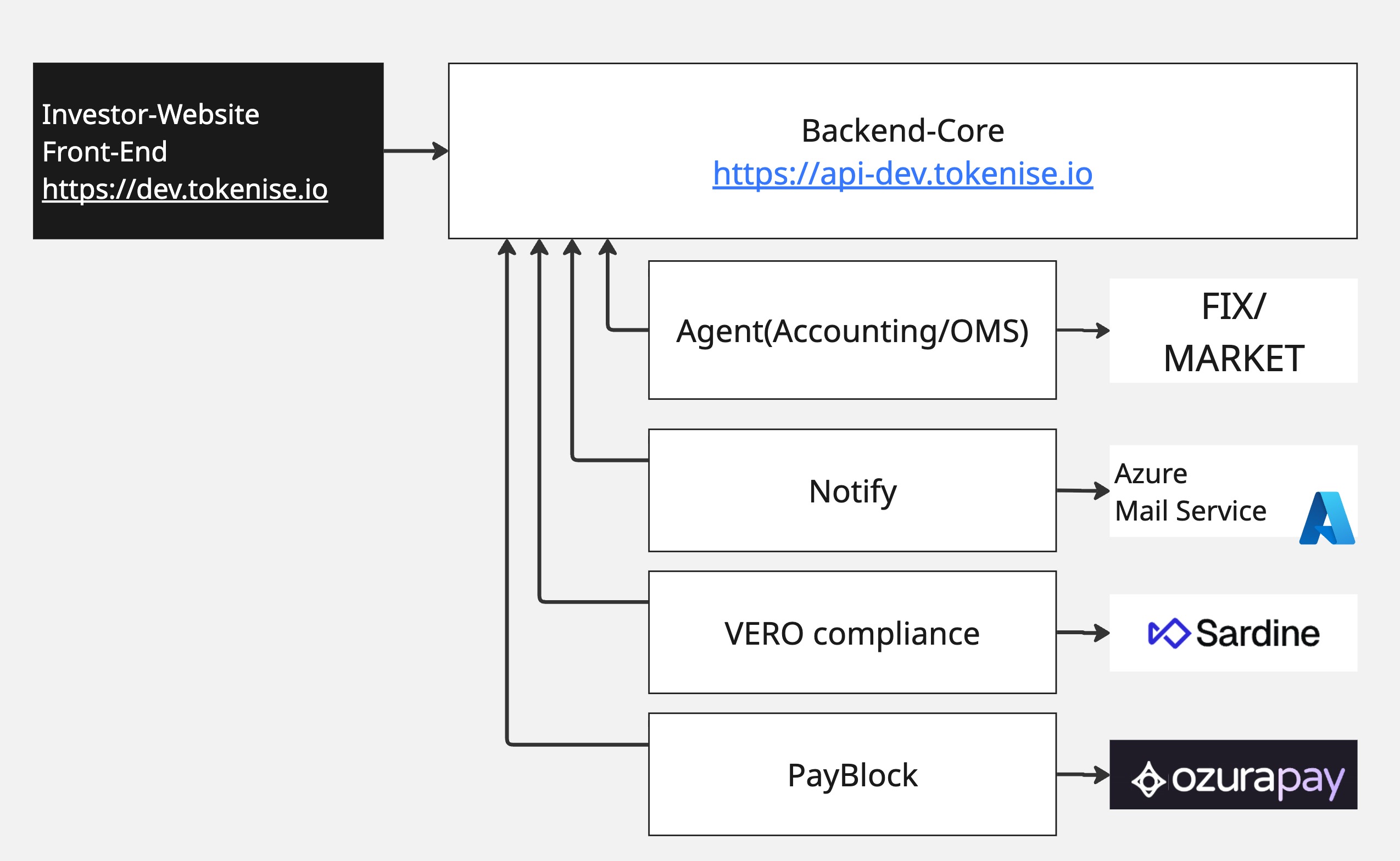

Tokenise-Broker Architecture

Backend-Core is the central coordination and business-logic layer.

  • The Investor Website sends its API/WebSocket requests to Backend-Core.
  • Backend-Core coordinates with other services: Agent (Accounting/OMS), Notify, VERO Compliance, and PayBlock.
  • External integrations such as FIX/MARKET, Azure Mail Service, Sardine, and payment providers are reached indirectly through these services, not directly from the front-end.

The main idea is that Backend-Core focuses on orchestration and business rules, not on low-level integration details of each external system.

Main Functional Domains

Tokenise-Broker Architecture

The key functional areas of Backend-Core are:

  • Authentication (VERO + Entra ID)
  • User management / KYC status
  • Payment management (deposits and withdrawals)
  • Posting to Agent (deposits, withdrawals, OMS-related operations)
  • Getting data from Agent (user data, balances, market information)

Below, the same areas are explained through concrete scenarios.

1) Investor Login and Identity Handling

When an investor logs in:

  1. The Investor Website authenticates the user with VERO and receives a token.
  2. Backend-Core verifies this token with VERO.
  3. Backend-Core checks if this veroId already exists in the broker database:
  4. If it exists, the user is treated as an existing Investor.
  5. If it does not exist, Backend-Core stores the user as a new investor linked to that veroId.

For admin users, access is controlled via Microsoft Entra ID instead of VERO:

  • Entra ID is used for authentication.
  • Backend-Core must clearly distinguish between:
  • investor sessions (VERO-based)
  • admin sessions (Entra ID–based)

So Backend-Core is responsible for handling both identity types correctly and applying the right logic depending on the context.

2) KYC Status & VERO Compliance Integration

For KYC, Backend-Core:

  1. Requests the current KYC status of a user from the Compliance service.
  2. Stores only the latest KYC status in its own database.
  3. If the user has not completed KYC, Backend-Core triggers the onboarding flow using the VERO Compliance SDK.

Important design decision:

  • No KYC data is stored in Backend-Core.
  • All detailed KYC data is stored centrally in the VERO Compliance database.
  • Backend-Core only keeps:
  • a reference to the user (e.g. via veroId)
  • the latest KYC status (e.g. pending, approved, rejected)

Because of this:

  • The Admin Panel does not show full KYC details.
  • If someone needs to see KYC documents or detailed data, they must access the VERO Compliance Admin Panel, assuming they have the correct permissions there.

3) Deposit Flow Orchestration

When a user requests a deposit:

  1. Backend-Core records the deposit request and its parameters (amount, user, currency, etc.).
  2. Based on that data, Backend-Core calls VeroPay / PayBlock to reach the appropriate payment gateway.
  3. If the payment gateway responds with success, VeroPay/PayBlock notifies Backend-Core that the funds have been received.
  4. Backend-Core then considers the deposit as successfully funded and proceeds to the next step:
  5. It posts the deposit information to Agent, where the actual accounting and balance handling are implemented.
  6. Backend-Core controls and tracks the whole flow from:
  7. receiving the deposit request
  8. confirming that the money has arrived
  9. forwarding the corresponding accounting operation to Agent

The goal is to ensure the full chain is consistent: money received ↔ accounting entry created.

4) Order Handling via Agent

When a user submits an order:

  1. The Investor Website sends the order request to Backend-Core.
  2. Backend-Core validates the request and forwards it to Agent (Accounting/OMS).
  3. Agent is responsible for:
  4. all accounting and balance checks
  5. order handling and interaction with the market/FIX side
  6. Backend-Core receives status updates from Agent (e.g. accepted, filled, partially filled, rejected).
  7. Based on these statuses, Backend-Core:
  8. sends responses back to the front-end so the user sees the correct state
  9. can trigger notification requests (via Notify) when needed, such as order confirmations or status changes.

Backend-Core itself does not implement the low-level OMS/accounting logic; it orchestrates the flow and ensures that the user and UI always see the correct state.

5) Market Data and User Data from Agent

All market-related information consumed by the Investor Website is obtained through Backend-Core, which in turn reads it from Agent.

Examples:

  • order book data
  • prices
  • other market information
  • user-specific data that Agent maintains (e.g. balances)

Backend-Core:

  • requests this data from Agent
  • exposes it as APIs (and/or WebSockets) to the front-end

This keeps the data path clear:

  • Agent is the source of truth for market and accounting data.
  • Backend-Core is the access point and orchestrator for the front-end.
